Leak Sensor

누액감지센서

1) Metal Film Sensor

Leak Sensor prevent leakage by detecting leaks at industrial sites that may leak chemicals(Water, acid, alkali, etc.)

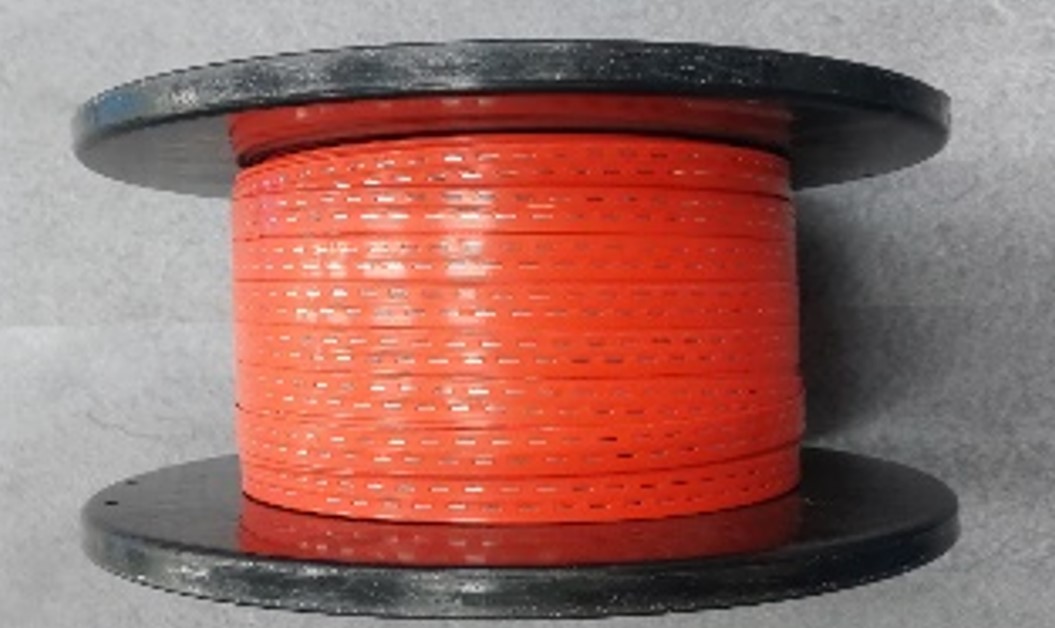

Models AMS-FFCS-F15/F15W
Types Phase separative type, Normal type
Sizes (mm) 15(W) * X(L) * 0.8(H)
Controllers IG/OD type controllers are available (compatible)
Detective chemicals Acid, Alkali
Materials Fluoropolymers, SUS
Installation Length Max. 10 m
(Please contact to us in case of following conditions;
completely soaking condition by water at outdoor, installation for a long distance)
Installation method According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor
Cable length (Communication length) Max. 200 m
Rated voltage /Current/Power consumption 5 V(DC) / Max.250 mA/1.25 W
Leak/Brokenness detection time t < 1 s

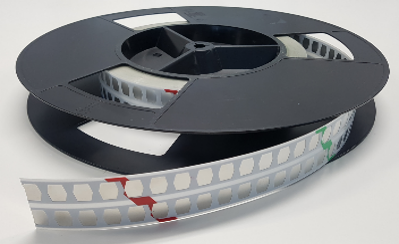

Models AMS-FFCS44
Types Phase separative type, Normal type
Sizes (mm) 44(W) * X(L) * 0.6(H)
Controllers IG/OD type controllers are available (compatible)
Detective chemicals Acid, Alkali
Materials PET insulating film, Anode/Cathode plates
Installation Length Max. 10 m
(Please contact to us in case of following conditions;
completely soaking condition by water at outdoor, installation for a long distance)
Installation method According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor
Cable length (Communication length) Max. 200 m
Rated voltage /Current/Power consumption 5 V(DC) / Max.250 mA/1.25 W
Leak/Brokenness detection time t < 1 s

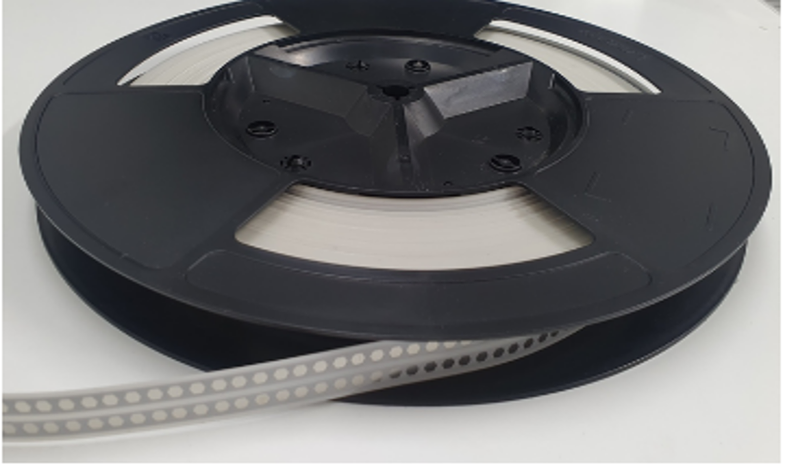

Models AMS-FFCS26
Types Phase separative type, Normal type
Sizes (mm) 26(W) * X(L) * 0.6(H)
Controllers IG/OD type controllers are available (compatible)
Detective chemicals Acid, Alkali
Materials PET insulating film, Anode/Cathode plates
Installation Length Max. 10 m
(Please contact to us in case of following conditions;
completely soaking condition by water at outdoor, installation for a long distance)
Installation method According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor
Cable length (Communication length) Max. 200 m
Rated voltage /Current/Power consumption 5 V(DC) / Max.250 mA/1.25 W
Leak/Brokenness detection time t < 1 s

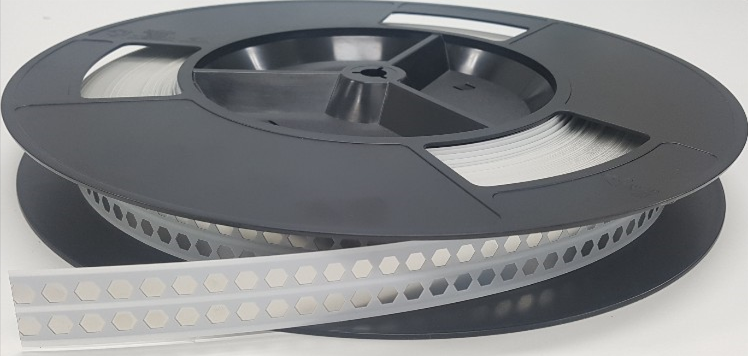

Models AMS-FFCS18
Types Phase separative type, Normal type
Sizes (mm) 18(W) * X(L) * 0.6(H)
Controllers IG/OD type controllers are available (compatible)
Detective chemicals Acid, Alkali
Materials PET insulating film, Anode/Cathode plates
Installation Length Max. 10 m
(Please contact to us in case of following conditions;
completely soaking condition by water at outdoor, installation for a long distance)
Installation method According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor
Cable length (Communication length) Max. 200 m
Rated voltage /Current/Power consumption 5 V(DC) / Max.250 mA/1.25 W
Leak/Brokenness detection time t < 1 s

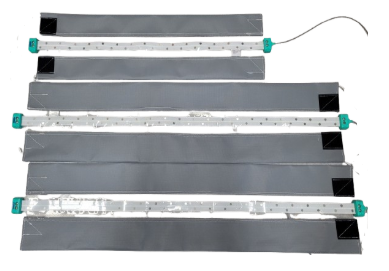

2) Leak Sensors

Models AMS-OG-44-EX
Types Line type
Sizes 44(W) * X(L) * 0.6(H)
Materials PET
Installation of sensors L ≤ 1 m/1CH
Installation method Using bracket, Acid-resistant double-sided tape
Sensor explosion-proof certification number 21-KA2BO-0826X
Barrier explosion-proof certification number KFD0-CS-EX1.50P

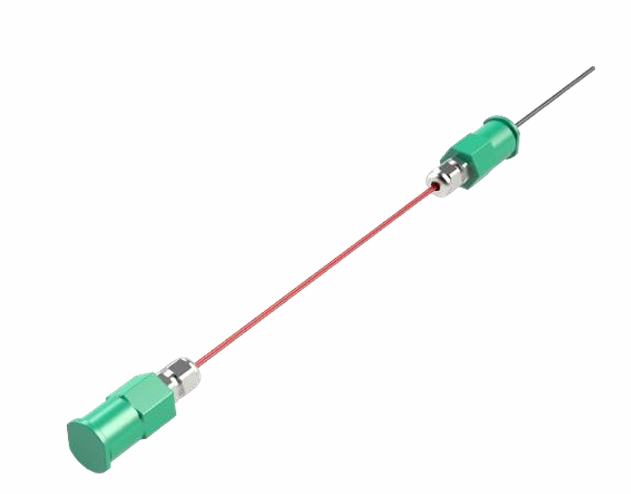

Models AMS-FFCS-LS-EX
Types Line type
Sizes 26(W) * X(L) * 0.6(H)
Materials PET
Installation of sensors L ≤ 5 m/1CH
Installation method Using bracket, Acid-resistant double-sided tape
Sensor explosion-proof certification number 19-KA2BO-0695X
arrier explosion-proof certification number KFD0-CS-EX1.50P

Models AMS-PC-04-EX(explosion prevention model)
Sizes (mm) Ø52 * H40 mm (without a bracket)
Types Normal organic type, Point type(sensor integrated)
Detective chemicals Organic solvents
Materials PFA, PTFE
Rated voltage/Current Max. 13 V (DC),< 20 ㎃
Power consumption 260 mW
Chemical resistance Excellent
Reusability Enable
Leak/Brokenness detection time t < 30 s
Specifications for a communication LED – output / Green – normal / Yellow – water detection / Red – organic chemicals detection
Dry contact, A point contact(leak alarm
Specifications for a wire RED : DC+12 V / BLACK : 0 V /
WHITE : leak alarm
Installation method Using brackets

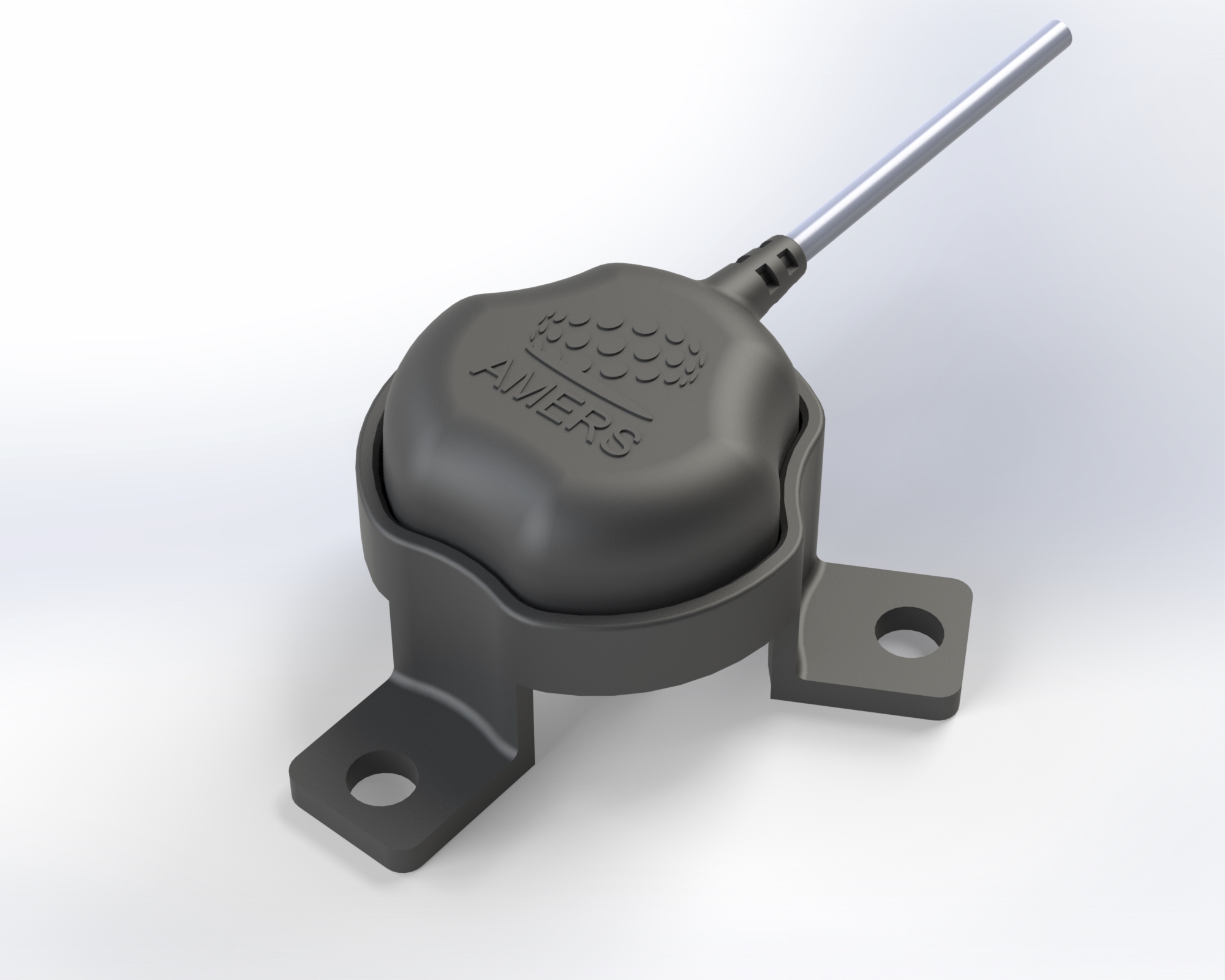

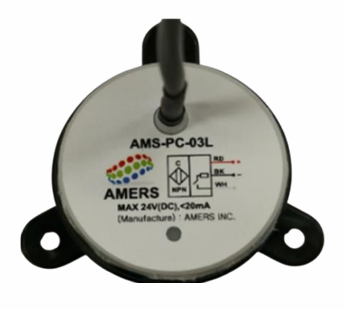

Models AMS-PC-03L
Sizes (mm) Ø52 * H40 mm (without a bracket)
Types Normal organic type, Point type(sensor integrated)
Detective chemicals Organic solvents
Materials PFA, PTFE
Rated voltage/Current Max. 13 V (DC),< 20 ㎃
Power consumption 260 mW
Chemical resistance Excellent
Reusability Enable
Leak/Brokenness detection time t < 30 s
Specifications for a communication LED – output / Green – normal / Yellow – water detection / Red – organic chemicals detection
Dry contact, A point contact(leak alarm)
Specifications for a wire RED : DC+12 V / BLACK : 0 V /
WHITE : leak alarm
Installation method Using brackets

Models AMS-PS02-LS
Sizes (mm3) Φ35*17
Types Sensor, Controller separative type
Detective chemicals Acid, Alkali
Materials SUS, PVDF
Installation method Installation of brackets
Cable length (Communication length) Max. 100 m
Rated voltage /Current 24±1 V(DC) ,< 40 ㎃
Power consumption MAX. 0.96 W
Temperature -20 ℃ ~ 80 ℃
Chemical resistance Excellent
Reusability Enable
Leak/Brokenness detection time t < 1 s
